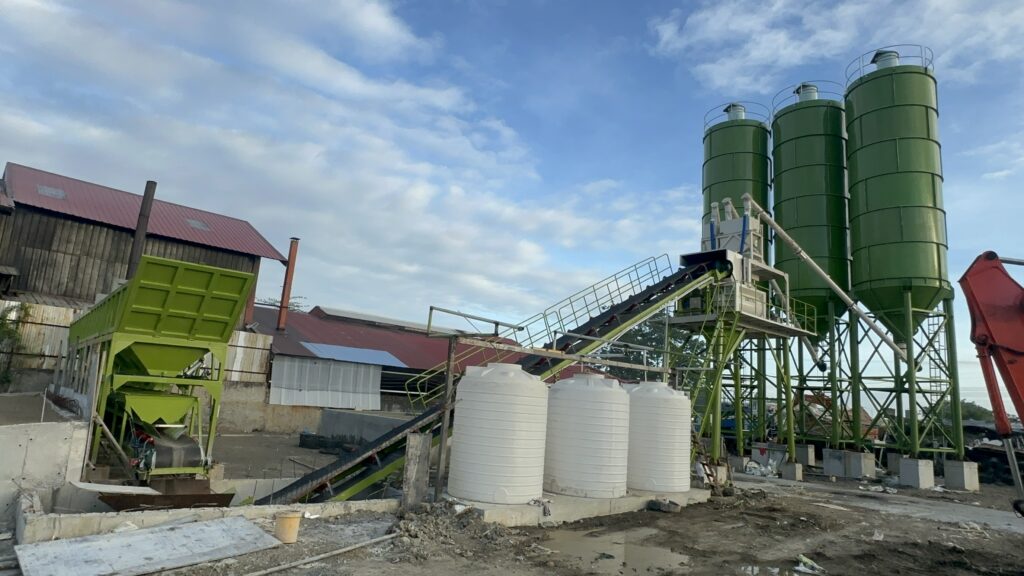

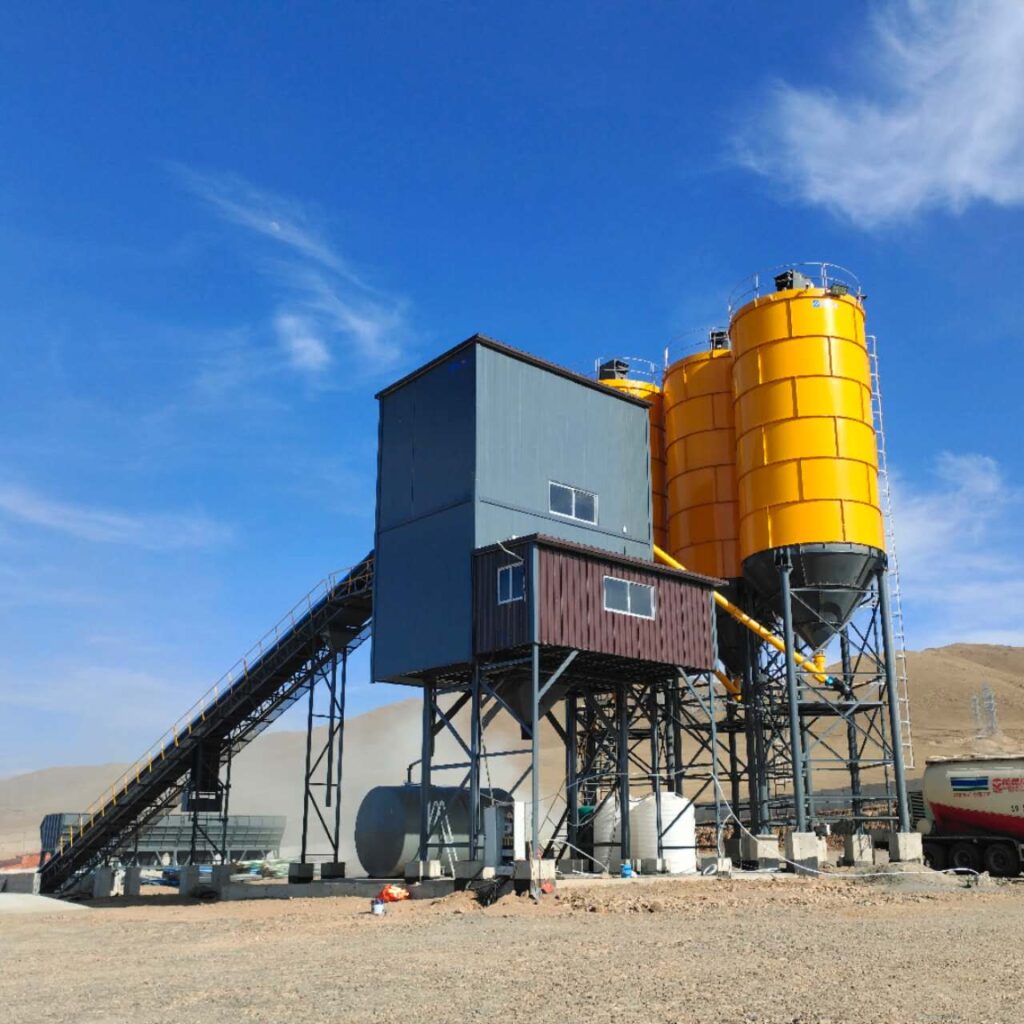

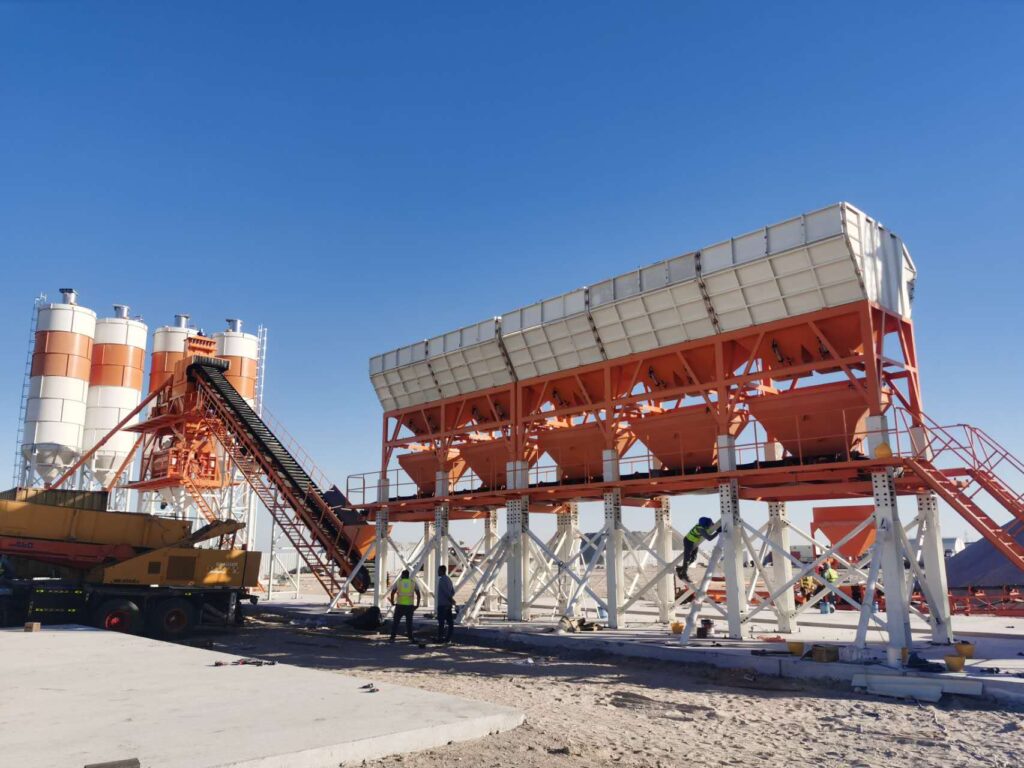

Technical Specifications of Stationary Concrete Batching Plant
(For more customized models, please contact us)

	HZS75	HLS90	HLS180	HLS270
Theoretical Production Capacity	75 M3/h	90 M3/h	180 M3/h	270m³/h
Mixer Model	JS1500	JS1500	JS3000	JS4500
Mixer Motor Power	2x30Kw	2x30Kw	2x55Kw	2*75Kw
Mixing Cycle Time	60s	60s	60s	60s
Nominal Capacity of Mixer	1500L	1500L	3000L	4500L
Maximum Aggregate Size	≤80mm	≤80mm	≤80mm	≤80mm
Cement Silo Capacity	3x100t	4x100t	4x200t	4*300t
Batching System Capacity	2400L	2400L	4800L	7200L
Aggregate Bin Capacity	4×8 M3	4×12 M3	4×25 M3	4*30 M3
Number of Aggregate Types	4	4	4	4
Aggregate Belt Conveyor Capacity	250t/h	350 M3 /h	750 M3 /h	1200 M3 /h
Max. Screw Conveyor Output	80t/h	80 T/h	110 T/h	160 T/h
Discharge Height	4.0m	4.0m	4.0m	4.0m
Total Installed Power	150Kw	164Kw	268Kw	363kw
Aggregate Weighing Range & Accuracy	（1000~4000）±2％kg	(600-3000)±2%kg	（1200-4000）±2%kg	(1600-7200)±2%kg
Cement Weighing Range & Accuracy	（200~800）±1％kg	(200-1000)±1%kg	（300-2400）±1%kg	(600-3200)±1%kg
Fly Ash Weighing Range & Accuracy	（100~400）±1％kg	(200-600)±1%kg	（200-1200）±1%kg	(400-1600)±2%kg
Water Weighing Range & Accuracy	（100~600）±1％kg	（200-500）±1%kg	（200-1200）±1%kg	(360-1500)±1%kg
Additive Weighing Range & Accuracy	（10~50）±1％kg	（20-60）±1%kg	（200-1000）±1%kg	（36-120）±1%kg

Explore our comprehensive selection of services that cater to a variety of needs, ensuring complete customer satisfaction.

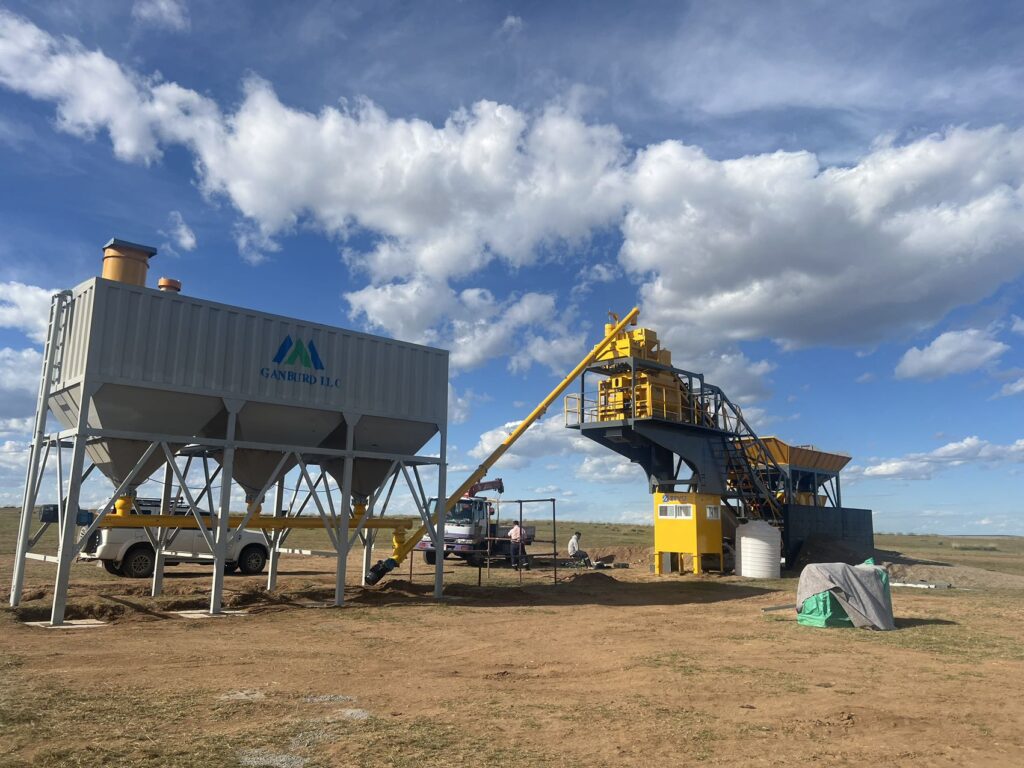

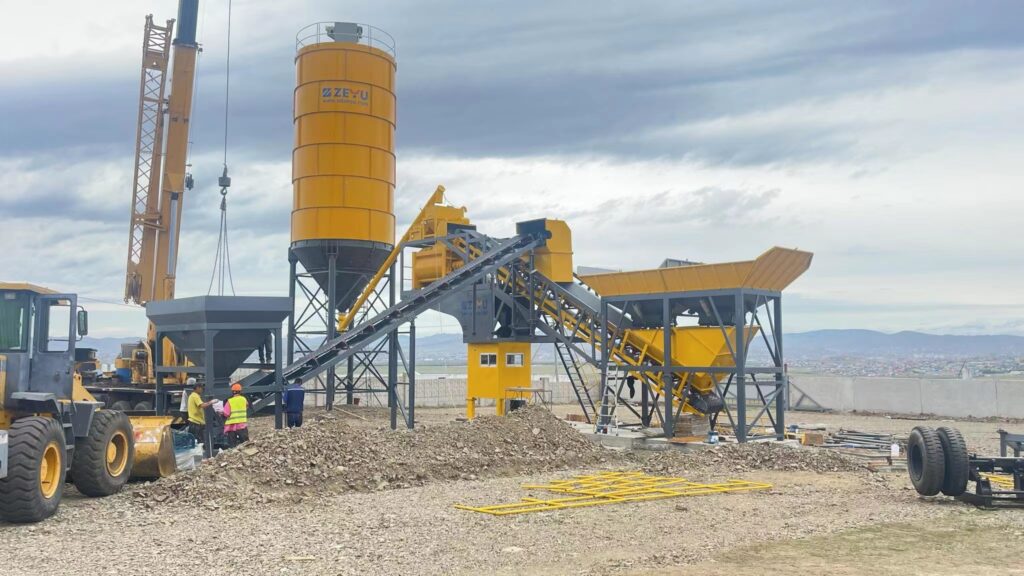

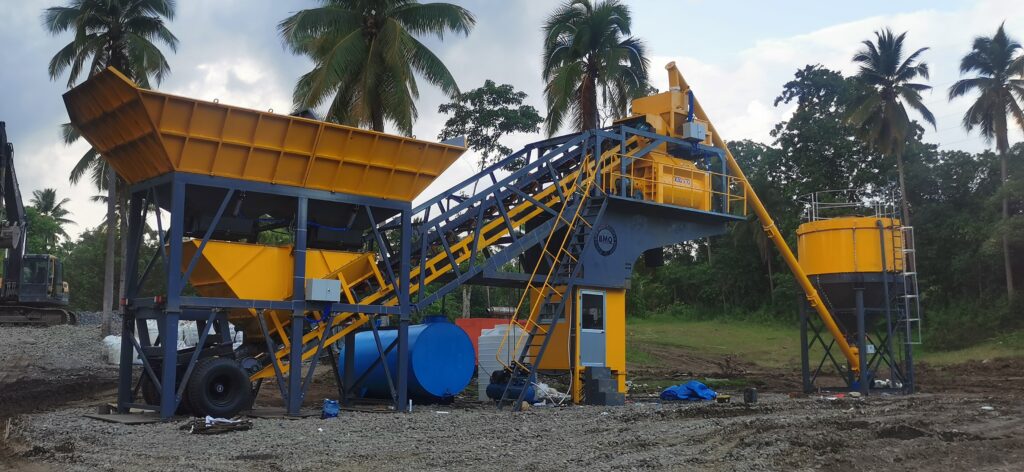

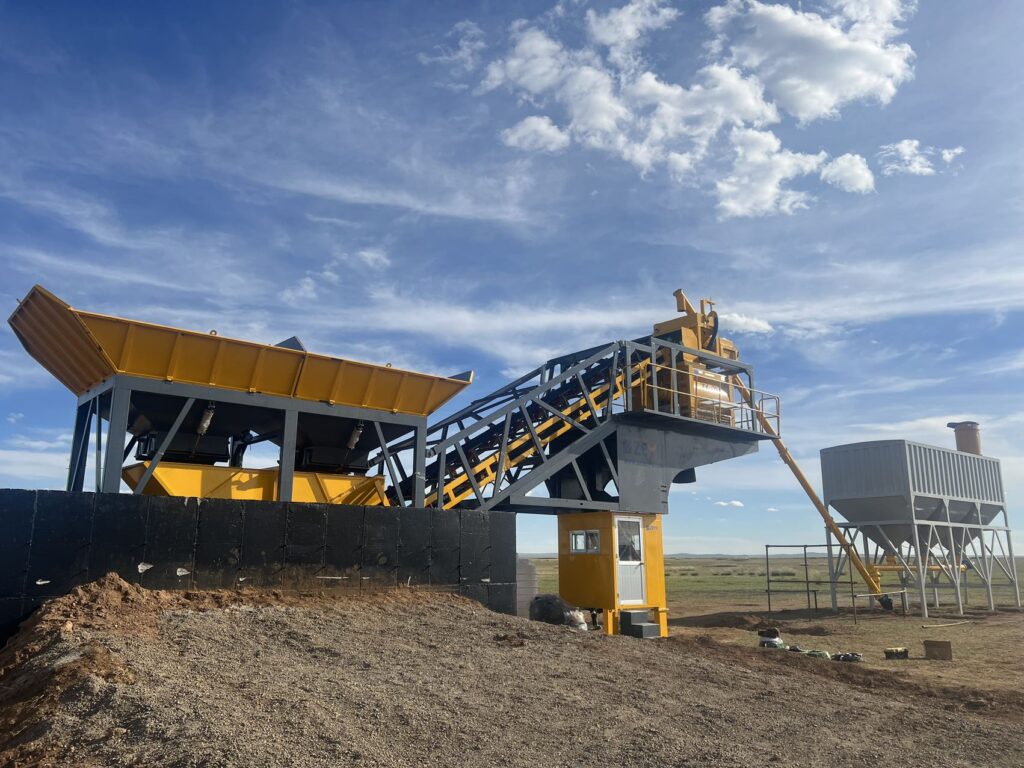

Technical Specifications of Mobile Concrete Batching Plant
(For more customized models, please contact us)

	YHZS35	YHZS50	YHZS75	YHZS120
Theoretical Production Capacity	35 M3/h	50 M3/h	75 M3/h	120m³/h
Mixer Model	JS75	JS1000	JS1500	JS2000
Mixer Motor Power	30Kw	2×18.5Kw	2x30Kw	2*37Kw
Mixing Cycle Time	60s	60s	60s	60s
Nominal Capacity of Mixer	750L	1000L	1500L	2000L
Maximum Aggregate Size	≤80mm	≤80mm	≤80mm	≤80mm
Cement Silo Capacity	1x100t	2x100t	2x100t	2*100t
Batching System Capacity	1200L	1600L	2400L	3200L
Aggregate Bin Capacity	2×4 M3	2×6 M3	2×8 M3	3*20 M3
Number of Aggregate Types	2	2	2	3
Aggregate Belt Conveyor Capacity	150t/h	200 M3 /h	250 M3 /h	500 M3 /h
Max. Screw Conveyor Output	40t/h	80 T/h	80 T/h	80 T/h
Discharge Height	3.8m	3.8m	3.8m	4.0m
Total Installed Power	75Kw	105Kw	150Kw	165kw
Aggregate Weighing Range & Accuracy	（1000~3000）±2％kg	(1000-4000)±2%kg	（1000-4000）±2%kg	(80-3600)±2%kg
Cement Weighing Range & Accuracy	（150~500）±1％kg	(200-600)±1%kg	（200-800）±1%kg	(400-1200)±1%kg
Fly Ash Weighing Range & Accuracy	（100~300）±1％kg	(100-300)±1%kg	（100-400）±1%kg	(130-500)±2%kg
Water Weighing Range & Accuracy	（100~300）±1％kg	（100-450）±1%kg	（100-600）±1%kg	(150-500)±1%kg
Additive Weighing Range & Accuracy	（0~20）±1％kg	（10-50）±1%kg	（10-50）±1%kg	（15-60）±1%kg
